Pvc Electrical Conduit Installation Guide

Pvc Electrical Conduit Installation Guide. When installing conduit according to the national electrical code (nec), napco pvc conduit can be used with up to 90°c (194°f) wiring. You may notice there’s only two brands compared for in the light gauge category.

Conduit Installation Guide and Tips For Installation, Conduit from www.pinterest.com

Pvc conduit sanded before glueing for better insertion on the fitting. This guideline covers the installation of steel rigid metal conduit (rmc), steel intermediate metal conduit (imc), and steel electrical metallic tubing (emt). Short description about the correct/incorrect underground installation of pvc conduit and imc conduit.

Source: www.familyhandyman.com

Once that’s all settled, connect your outdoor electrical conduit inside the fittings of the box. How to install pvc conduit step 1:

Source: www.pinterest.com

This is because it’s hard to find many companies that make. 9.0 mechanical damage minimization 10.0 conduit fittings 11.0 conduit termination 12.0 pvc cement/thinner/primer 13.0 cementing conduit 14.0 temperature 15.0 trenching 16.0 concrete encased duct bank.

Source: www.finehomebuilding.com

Here i must mention that when joining electrical conduit pipes to the loop in boxes, you use pvc glue. Ensure some distance between the conduits and try to avoid the overlapping of conduits.

Source: www.familyhandyman.com

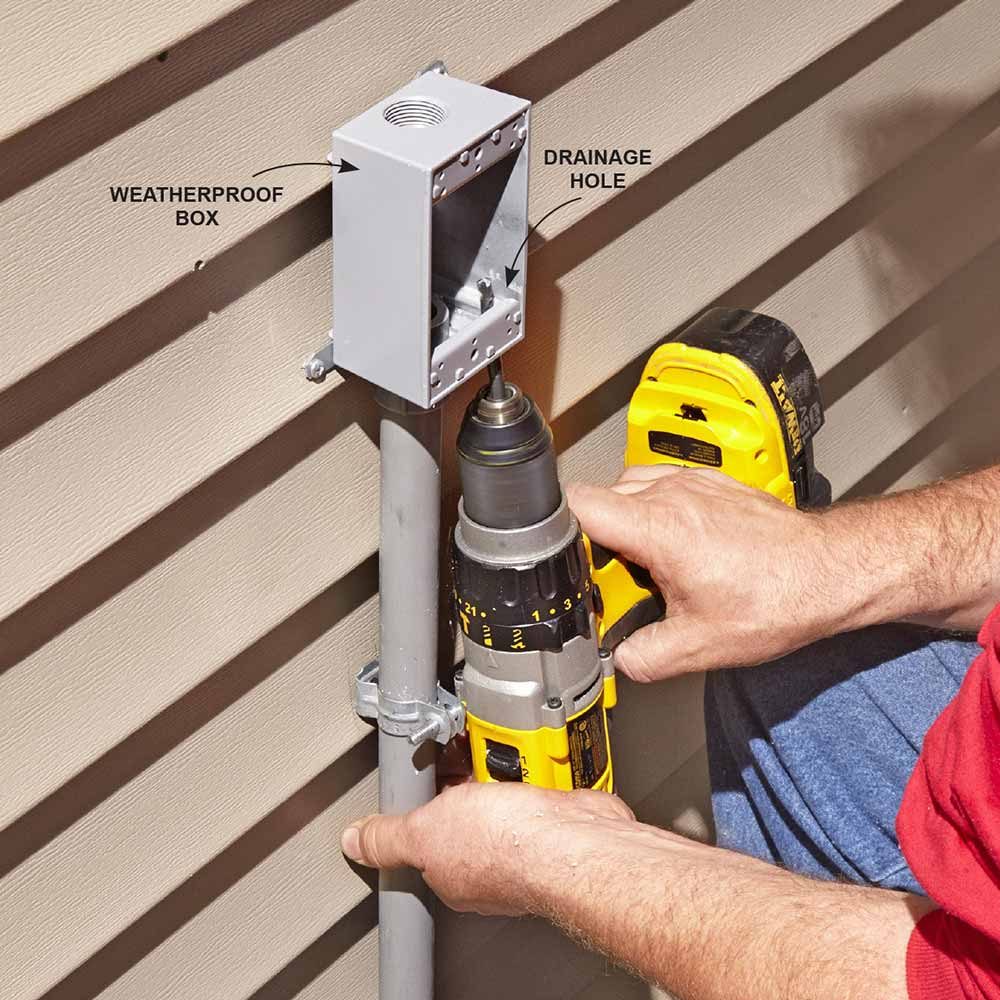

So, install a drain at the lowest point of a conduit run where water may gather. Use if you’re installing in an area with temperature swings.

Source: www.youtube.com

Short description about the correct/incorrect underground installation of pvc conduit and imc conduit. Conduit installation guide 1.0 2.0 3.0 cd0001u conduit installation guide index.

Source: www.homedepot.com

Conduit installation guide 1.0 2.0 3.0 cd0001u conduit installation guide index. The average weight of a 3m length of 25mm heavy gauge electrical pvc plastic conduit is 0.33kg.

Source: familyhandyman.com

How to install pvc conduit step 1: The conduit features a low mechanical resistance, a high thermal resistance, and a high

Source: www.familyhandyman.com

Make a hole by using electric drill machine on the structure. Here i must mention that when joining electrical conduit pipes to the loop in boxes, you use pvc glue.

Source: www.youtube.com

Epc 40 pvc conduit (schedule 40) epc 80 extra heavy wall pvc conduit (schedule 80) epec smooth wall coilable high density polyethylene conduit. 12.1 use only recommended pvc cement from conduit fabricator.

Source: es.slideshare.net

9.0 mechanical damage minimization 10.0 conduit fittings 11.0 conduit termination 12.0 pvc cement/thinner/primer 13.0 cementing conduit 14.0 temperature 15.0 trenching 16.0 concrete encased duct bank. The conduit features a low mechanical resistance, a high thermal resistance, and a high

Source: www.familyhandyman.com

B) avoid and/or prevent damage to existing underground piping, conduits, and cables. C) some installations require you to remove existing pavement or concrete slabs.

Source: www.pinterest.com

Awwa c605 “underground installation of polyvinyl chloride (pvc) You lay electrical conduits in concrete slab, by connecting the conduit pipes to the boxes.

Use When You Need To Change A Conduit Run Direction By 90°.

Cut with a backsaw and miter box, a. The conduit features a low mechanical resistance, a high thermal resistance, and a high Use long radius bend or pvc conduit bending spring used as per site requirement for the wall drop.

Pvc Conduit Sanded Before Glueing For Better Insertion On The Fitting.

D) take the proper precautions to prevent dirt, concrete, or trash from entering conduits. 12.1 use only recommended pvc cement from conduit fabricator. Solvent weld & electrical conduit installation guide 5 10.

This Guideline Covers The Installation Of Steel Rigid Metal Conduit (Rmc), Steel Intermediate Metal Conduit (Imc), And Steel Electrical Metallic Tubing (Emt).

Connect the pipe and the box. The marking shall be in accordance with the approved shop drawing. You may notice there’s only two brands compared for in the light gauge category.

In Other Words, Places Where You Have Condensation.

The average wall thickness of a 3m length of 25mm heavy gauge electrical pvc plastic conduit is 1.9mm. Emt is technically tubing, not conduit, hence the abbreviation uses the letter t instead of c. because the tubing is thin and lightweight, it is easy to bend with a special tool called a conduit bender.emt is best used indoors for residential and. The trick is to connect your pvcs into one box at a time while doing a conduit run.

Awwa C605 “Underground Installation Of Polyvinyl Chloride (Pvc)

Taking installation precautions and using the proper tools impact performance significantly. Ensure some distance between the conduits and try to avoid the overlapping of conduits. How to install pvc conduit step 1:
